AUTOMATED VEHICLE ACCESS CONTROL SYSTEM, BASED ON PARKIT CAMERA

LetUgo is a complete enduser software application for automated vehicle access control operations. The distinctly integrated ParkIT LPR camera, the CARMEN® Parking license plate recognition software and the application is used all together with LetUgo.

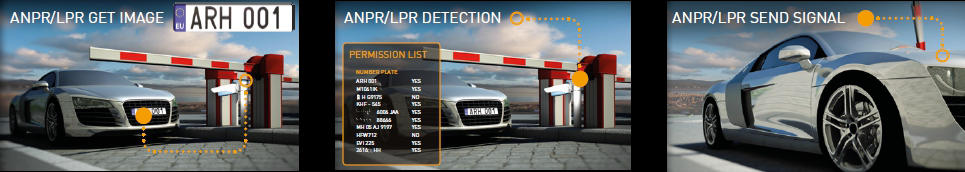

The ParkIT camera takes a series of pictures of the vehicle and the CARMEN® Parking software reads its license plate. Both the pictures and the read plate number are then given to LetUgo for evaluation. Based on the preset access criteria in LetUgo´s database, the software then does or does not open the gate or barrier for the vehicle to pass through. An option of manual gateopening from the controller computer is also available.

KEY FEATURES

• Automated vehicle entry of cars with registered license plates

• Automatic gate control, directly by the camera (with option to manuallyopen gate from the controller PC)

• Full auditing trail of all vehicles; keeping records of incoming and outgoing times of each vehicle, storing all incoming and exit car images, plate numbers and time stamps, keeping records of traffic and each payment made

MAIN BENEFITS

• Eliminating the need for car park users to have access cards or codes; centralizing registration

• Accelerating entry/exits to car park areas with fast processing times

• Simplifying registration of all vehicles; guest vehicles may also be entered into system for given time periods

FUNCTION LIST

Basic functionality	Automated gate control: number plate is read when a vehicle arrives to the checkpoint number plate is evaluated from database blacklist and whitelist management
Parking lot support	The system offers a parking fee calculation when a vehicle leaves the area
Number of checkpoints	Scalable, 1 to 4 cameras can be connected
Supported plate types	Number plate recognition for different countries and character types are supported: all latin, arabic, chinese, cyrillic, korean, thai
User management	Different user privileges can be set: user and group handling
Supported languages	Default interface language: English. The software is available at a growing number of languages
Triggering	When an external device (e.g. loop) detects the arrival of a vehicle, it sends a signal through the camera to the system that executes the entire access control procedure
Permission management	Number plates can be categorized Blacklist and whitelist management Warning is raised upon unauthorized activity
Logging	Every event is archived in a log file Alarm is raised upon error

TECHNICAL PARAMETERS

Trigger & control	Hardware trigger: can be connected to the camera through its input port (e.g. loop controller) Gate control command: signal can be sent through the output port of the camera
Data export/import	.csv support Blacklists and whitelists can be imported.

TECHNICAL PARAMETERS

Connections

Camera connected to the PC via IP Ethernet connection
Gate is controlled directly from the camera output port
Any kind of detection sensor can be connected directly to the camera input port (optional)
